Rockwell PLC Troubleshooting: What You Can Fix Yourself and When to Call an Expert

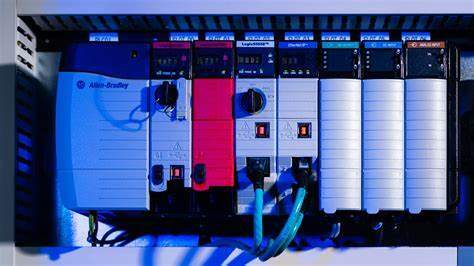

In any modern manufacturing environment, downtime isn’t just an inconvenience, it’s a liability. When a Programmable Logic Controller (PLC) throws an error, stops responding, or causes your equipment to freeze mid-process, the pressure to solve the problem builds fast. If that PLC happens to be a Rockwell system–ControlLogix, CompactLogix, or even a legacy SLC 500–you need a clear path to resolution.

At HESCO, we’ve worked with teams across industries who’ve found themselves in this exact situation. A line stops. The indicator lights start flashing. No one can tell if it’s a hardware failure, a programming issue, or just a bad battery. And before you can call in support, leadership wants answers.

This guide is for those moments. It’s not a deep dive on ladder logic or an advanced engineering manual; it’s a practical resource you can reference when your Rockwell PLC stops doing what it’s supposed to do. We’ll walk through early checks, common issues, trusted tools, and how to know when it's time to call for backup.

Start Simple: The Checks You Can’t Afford to Skip

When a system goes down, it’s tempting to jump into the complex stuff right away. But some of the most common causes of PLC faults are simple and easy to miss.

Check for Communication Failures: Start by inspecting all your connections. Is there a loose Ethernet cable? Is a module not seated correctly in the rack? Communication loss between modules or external devices is one of the most common issues. If your PLC can’t “talk,” it can’t function.

• Look for red or flashing status LEDs.
• Use diagnostic displays to verify module recognition.
• Re-seat the modules or reset the chassis.

Power Supply Health: Inspect the power supply if the CPU is unresponsive or flashing an error code that references power or energy storage. Confirm you're getting voltage to the right terminals. Even if the lights are on, the supply could be failing under load.

• Test with a multimeter.
• Swap with a known-good power supply if available.
• Watch for excessive heat or signs of capacitor wear.

A quick system reboot may temporarily reset a fault, but repeated issues point to something deeper.

The Faults We See Most Often and How You Can Respond

Beyond the initial power and comms checks, these are the issues we help customers troubleshoot the most.

Faulty or Failing I/O Modules

What You’ll Notice: A motor won’t start. A limit switch reads inactive. An analog input shows zero.

What To Do: Use your diagnostic software (Studio 5000 or RSLogix) to isolate the card. Try swapping in a spare if available. If the fault follows the module, you’ve found your culprit.

Battery and Memory Warnings

Batteries are easily overlooked, especially in older SLC and MicroLogix systems.

Symptoms:

• Loss of stored variables after power-down
• Error codes referencing battery low or failure
• Failed uploads or downloads

Fix: Replace the battery, ideally during a scheduled shutdown. For CompactLogix and ControlLogix systems, ensure you have the correct battery type and that your controller is saving program data properly.

For low memory faults, look at what’s been added to the program recently. Tag overload, excessive trend data, or expanded routines can push systems past their limits.

Next Step:

• Clean out unused routines or tags
• Upgrade the controller memory if needed
• Review trend logs for unnecessary data collection

Tools That Belong in Every PLC Troubleshooting Kit

Your Rockwell PLC has built-in diagnostics, but you need the right tools to access and interpret them.

Studio 5000 Logix Designer

If you’re working on ControlLogix or CompactLogix platforms, this is your go-to. Beyond writing code, Studio 5000 provides:

• Real-time fault tracking
• Program logic visualization
• Trend graphing for analog values
• Module status and firmware version checks

Use it to go online with the controller and walk through the logic step-by-step. You can often catch timing errors, mismatched data types, or watchdog timers triggering unnecessarily.

RSLogix 500

Still running legacy systems like the SLC 500 or MicroLogix? RSLogix is essential. Even though it's older software, it’s still one of the most reliable tools for seeing what’s happening behind the scenes in older hardware.

• Scan status displays
• Real-time bit toggling
• Instruction-by-instruction error tracing

TechConnect Support

Rockwell’s support platform gives you access to engineers who’ve seen every possible configuration and error. If you’ve got a contract, use it. Their remote troubleshooting tools can save hours (or even days) of guesswork.

Prevent the Next Breakdown Before It Happens

If you’ve ever lost hours because of a preventable PLC issue, you understand the value of planning ahead.

Regular Maintenance & Inspection

• Visual Checks: Inspect wiring, connections, and environmental exposure monthly.
• Battery Replacements: Don’t wait for an error. Replace batteries every 2–3 years.
• Heat Management: Monitor cabinet temps, especially in summer. Overheated controllers are more likely to fail unexpectedly.

Backup Your PLC Programs

Do this before something breaks. Regular backups (at least quarterly, or after major changes) ensure that a failed CPU doesn’t mean lost code.

We recommend using Rockwell’s AssetCentre for automated backups across your entire facility if you’re managing dozens of systems.

Plan for Lifecycle Changes

Legacy hardware eventually reaches end-of-life. If you’re still relying on SLC 500 or even early CompactLogix systems, consider planning a migration strategy now. HESCO offers Installed Base Evaluations (IBEs) that help you assess the age, health, and supportability of every device on your floor before it becomes a fire drill.

Know When to Escalate: It’s Not Failure, It’s Strategy

Troubleshooting isn’t about solving every problem yourself. It’s about knowing what’s fixable in-house and when to bring in support.

DIY Candidates:

• Faulty I/O card replacement
• Battery swaps
• Uploading/restoring known-good programs
• Re-seating cables or reinitializing communication

Time to Call an Expert:

• Faults spanning multiple systems or protocols
• Corrupted programs or memory allocation failures
• Hardware failures in CPUs or communication modules
• Emergency failures with no known backup

Final Thoughts: Stay Ready, Not Reactive

You don’t need to be a PLC engineer to get your system back online, but you do need a basic understanding of what your Rockwell system is trying to tell you. With the right checks, tools, and support structure, most common issues can be addressed without panic.

If you’re tired of scrambling during shutdowns or you’re due for a smarter backup and maintenance strategy, reach out to HESCO. Whether it’s on-site troubleshooting, system audits, or controller migrations, we’re here to help.

Need help with a stubborn PLC issue or want a second set of eyes on your system health?  Get in touch with HESCO today. We’ll help you troubleshoot faster, plan better, and stay ahead of what’s next.
